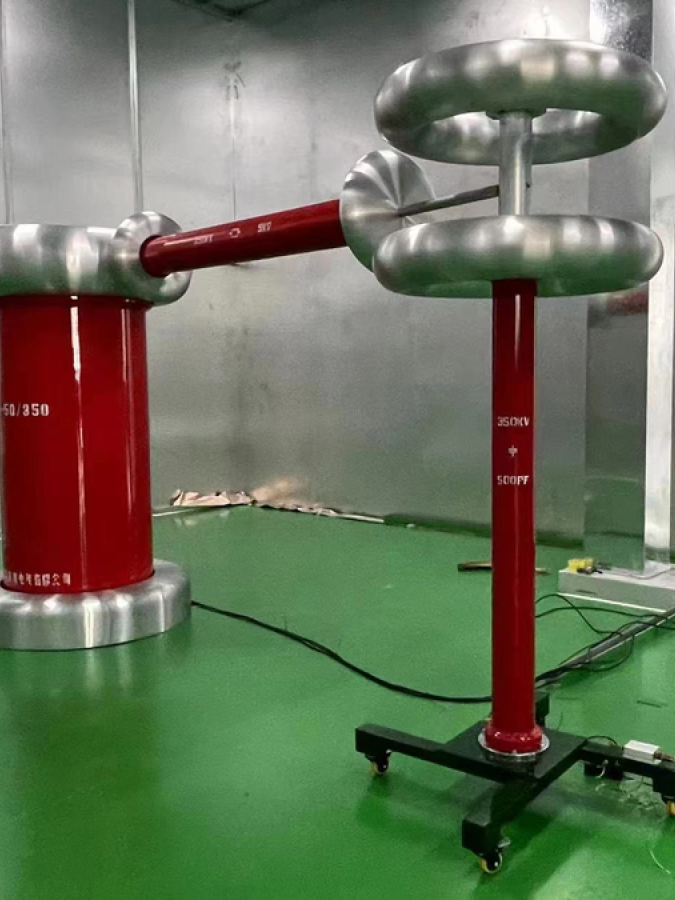

| Type | YDTW-40 / 200 |
|---|---|
| Structure Pattern | Insulation shell type, oil immersed, ONAN |
| Phase | Single phase |
| Frequency | 50Hz |
| Rated Input Voltage | 0.4kV |
| Rated Input Current | 100A |
| Rated Output Voltage | 200kV |
| Rated Output Current | 0.2A |
| Rated Output Capacity | 40kVA |
| Measurement Winding Ratio | 2000:1 |
| Wave-Form Aberration Rate | ≤3% |
| No-Load Current | ≤10% (not including capacitance current) |
| PD Level | 100% rated voltage ≤ 2pc ; 80% rated voltage ≤ 1.5pc |
| Insulation Level | High voltage 110% rated self-induced voltage withstanding 1 min |
| Impedance Voltage | ≤10% |
| Rated Capacity | 40kVA |
|---|---|
| Rated Output Voltage | 200kV |
| Rated Output Current | 0.2A |
| Rated Input Voltage | 0.4kV |
| Short-Circuit Impedance | <10% |
| Complete Device PD Level | Under 100% rated voltage, the PD ≤ 2pC |
| Running Time | 100% rated voltage, 100% rated current run 5 minutes; 5 minutes on, 5 minutes off, 20 cycles a day. |
| Complete Device Wave-Form Aberration Rate | When regulator input voltage wave-form aberration rate <3% Complete device output voltage wave-form aberration rate ≤3% |
