1 Voltage Measurement:
| Model | Voltage Range | Accuracy* |
|---|---|---|
| LQHJ60-0.05 | 2kV 5kV 10kV 15kV 20kV 30kV 60kV (L-N) | 0.05% |
2 Current Measurement:
| Model | Voltage | Current Range | Accuracy* |
|---|---|---|---|
| LQHL72.5-1000-0.05 | 72.5kV (L-N) | 5A, 10A, 20A, 50A, 250A, 500A, 1000A | 0.05% |
* At 10-120% range utilization, includes uncertainty of calibration

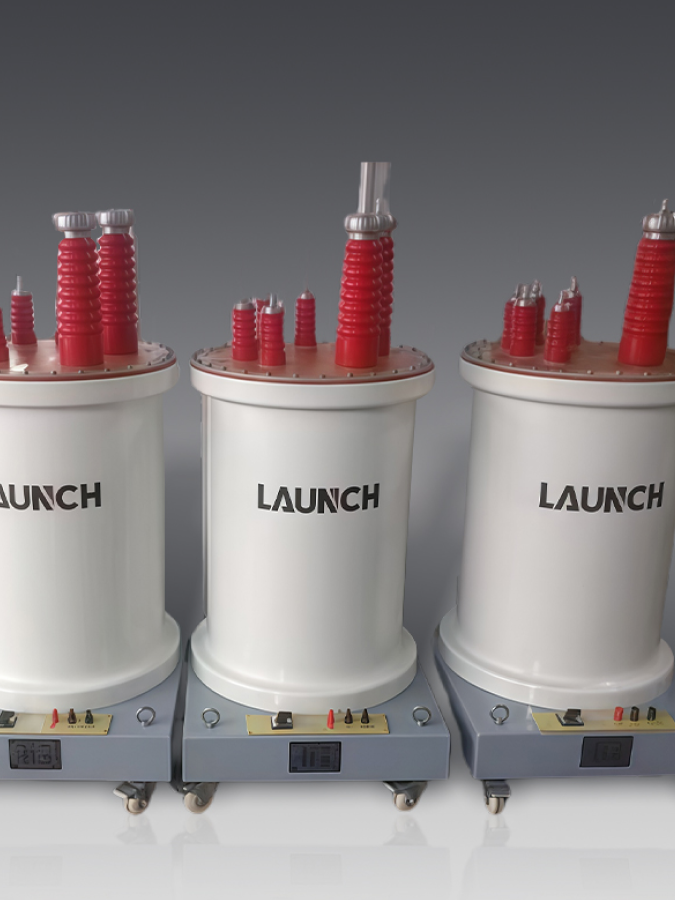

3 High Precision Current Transformer
| Quantity | 3 Units |
| Structure pattern | Oil Filled & Epoxy Glass Insulation |
| Rated frequency | 50Hz ~ 200Hz |
| Rated voltage | 72.5kV RMS |
| Primary current | 5A, 10A, 20A, 50A, 100A, 250A, 500A, 1000A |
| Secondary current | 5A |
| Accuracy range | 10% ~ 120% |
| Accuracy class | 0.05 |
| Output power capacity | 15VA |
| Running time | Continuous running |
| Partial discharge | <10pC |
4 Parameter of Each CT:
| Rated Primary Current (A) | 1000A (P1P2) |
500A (P1P2) |
250A (P1P3) |
100A (P1P3) |
50A (P1P3) |
20A (P1P4) |
10A (P1P4) |
5A (P1P4) |
|---|---|---|---|---|---|---|---|---|
| Rated Secondary Current (A) | 5A (S1S3) |
5A (S1S2) |
5A (S1S5) |
5A (S1S3) |
5A (S1S2) |
5A (S1S4) |
5A (S1S3) |
5A (S1S2) |
| Accuracy Range 10% ~ 120% |
||||||||
| Accuracy Class | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
