1. Ambient Conditions
| Height above sea level | ≤1000m |
|---|---|
| Ambient temperature | -15℃ ~ +40℃ |
| Max daily temperature difference | ≤25℃ |
| Relative humidity | ≤95% (20℃) |
| Earthquake intensity | ≤8 level |
| The location gradient | < 5° |
| Sunlight intensity | 0.1W/cm² |
| Earth resistance | < 0.5Ω |
| Installation place | Indoor |

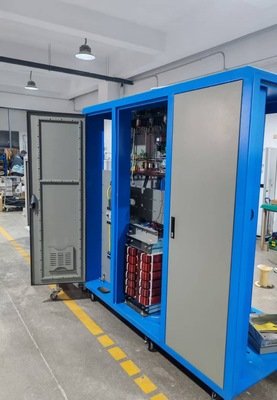

2. Performance Parameters of the Power Cubicle
| Rated Capacity | 100kVA |
|---|---|
| Rated output voltage | 310V |
| Rated output current | 186.2A |
| Rated input voltage | 415V ±10% 50Hz |
| Output mode | Three phase |
| Output waveform | Pure sine wave, distortion ≤1% |
| Adjustable range of frequency | 20 ~ 300Hz |
| Adjustable accuracy of frequency | 0.1Hz |
| Continuous working hours with full load | 60mins |
| Partial discharge capacity | < 5pC |
| Noise level | < 80dB |
3. Performance Parameters of the HV Box
- Supply voltage: AC ~ 220V
- HV measurement input Three-phase voltage: AC 0 ~ 200V
- HV measurement input voltage accuracy: 1%
- HV measurement input impedance voltage: 1MΩ
