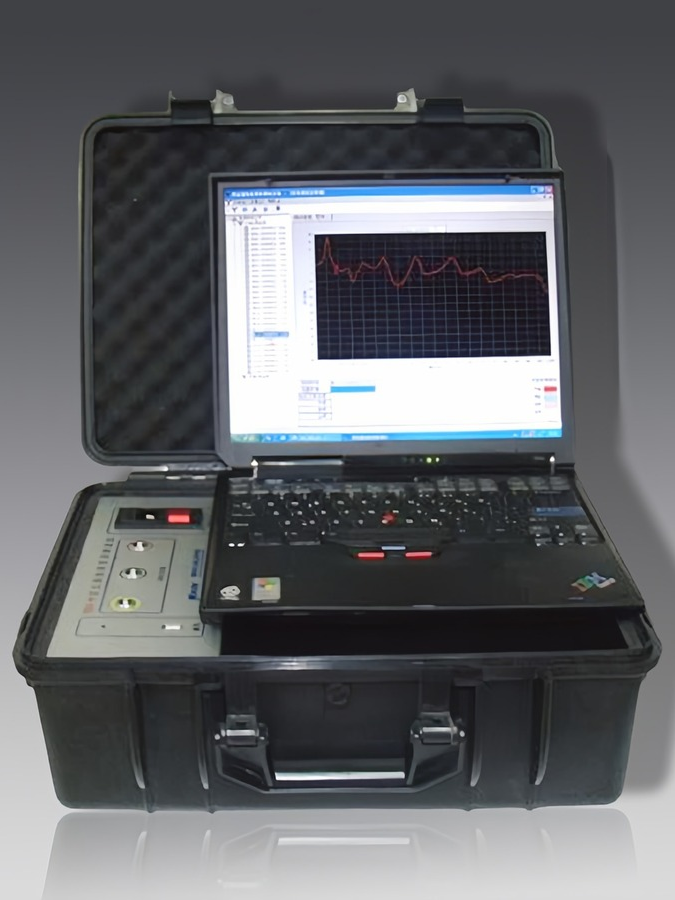

AC Test System Details

1. Use high-speed, high integration microprocessor to sample and control.
2. Use USB to connect the notebook PC and device.
3. Communication via wireless Bluetooth interface between the laptop and instruments.
4. Hardware cassette mechanism adopts DDS (from America), capable of detecting breakdown: distortion, swell, shift, tilt, inter-turn short circuit deformation, and contacting short circuit inter-phase.
5. High-speed, dual-channel, 16-bit A/D sampling (the waveform curve changes significantly if the tapping switch is changed during field tests).
6. The software can adjust the output signal range, with a maximum amplitude peak of ±10V.
7. The computer automatically generates the test results into a Word document.
8. Uses precision, high-stability components; same-phase repeat test measurement repetition rate >99.5%.
9. Finished circuit boards are surface-treated for resistance to water pollution and harmful gases.
10. The device includes two measurement systems: linear scan and sectional scan.
11. Amplitude-frequency characteristic complies with national technical specifications.
